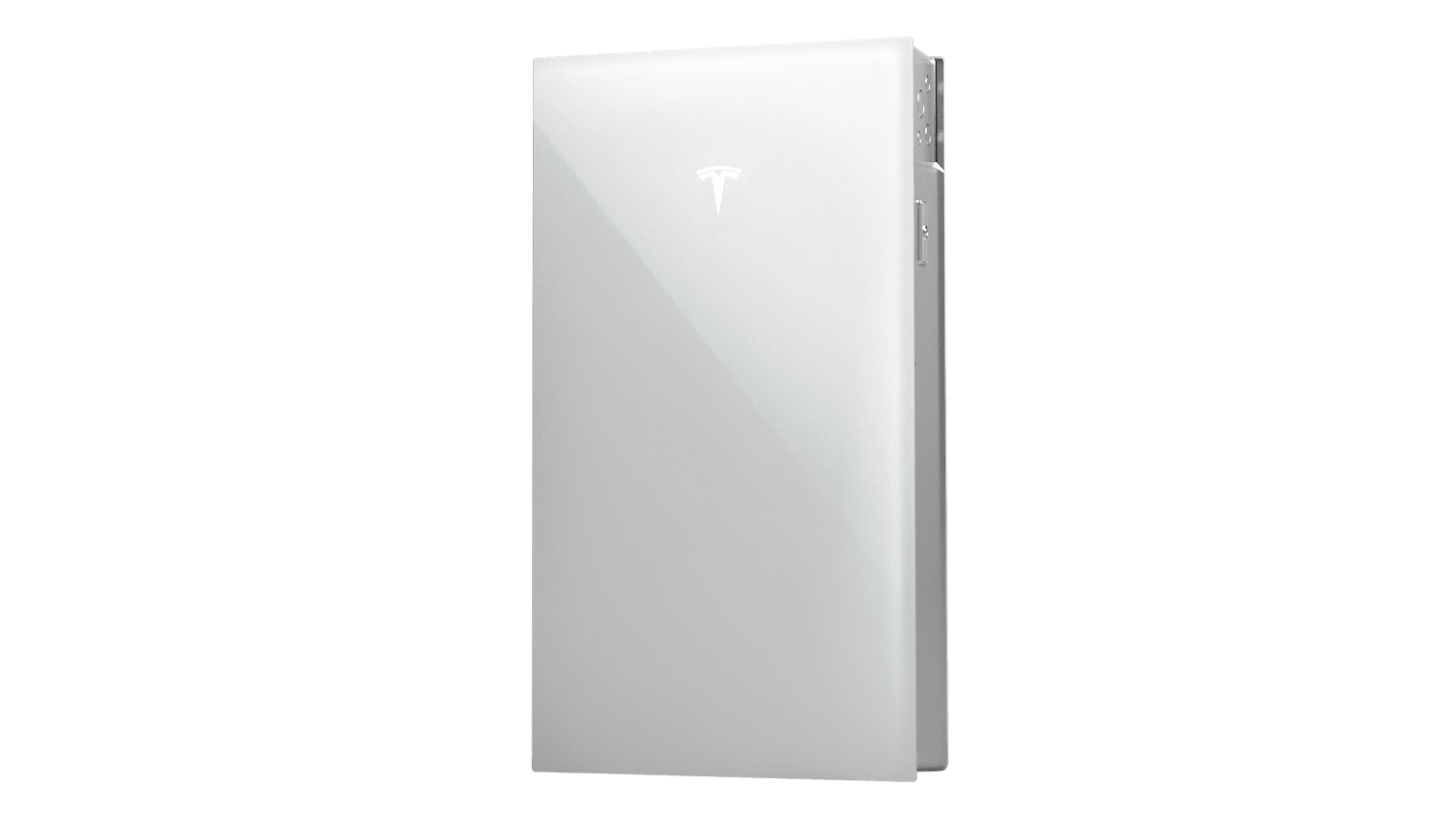

Tesla Powerwall 3 — 13.5 kWh with Integrated Solar Inverter

Batteries · Tesla

SKU: Powerwall 3

Tesla Powerwall 3 — 13.5 kWh with Integrated Solar Inverter

The all-in-one benchmark: 13.5 kWh storage with a built-in solar inverter accepting up to 20 kW DC of solar, 11.04 kW continuous output, and 185 A motor start — one unit runs most homes through an outage.

13.5kWh storage20kW DC solar input11.04kW continuous185A motor startAll-in-one design
Price guide 10/10Brand strength

Supplied and installed only — battery pricing is quoted as part of your complete system design.

Specifications

Usable capacity13.5 kWh (LFP)
Solar inputUp to 20 kW DC · integrated inverter
Continuous output11.04 kW AC
Motor start185 A LRA
BackupWhole-home with Backup Gateway 2
EnclosureIP55 (unit) / IP67 (battery & PE)
Dimensions / weight1105 × 609 × 193 mm · 130 kg
Operating range−20°C to 50°C

Physical & handling

Dimensions1105 × 609 × 193 mm
Weight130 kg
MountingFloor or wall
Suitable forWhole-home backup
